Technical Specifications

Type Professional Computer
Year
1983
CPU
Intel 8086 @ 8MHz
Co-Processore optional Intel 8087 arithmetic co-processor
RAM 128 kb or 256 kb, expandable to 640 kb
ROM 16Kb
VRAM 40 / 80 x 25
Colors 16
Graphic modes
640 x 400 - 640 x 200 - 320 x 200
Sound Beeper
Parallel port
1 X DB25 (Female connector)
Serial port
1 X DB25 (Male connector)
Floppy drive
5.25'' disk-drive (360KB)
Hard drive
1 X 5-10-20Mb (optional)
Monitor Green or yellow phosphore 12" monochrome or
optional color monitor
Supported OS
MS DOS 2.1, Concurrent CP/M 86, UCSD-P, PCOS

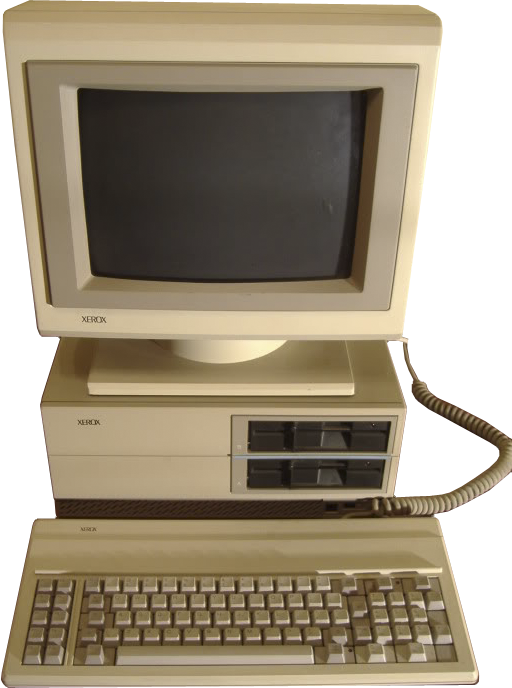

The Xerox 6060 was in fact an Olivetti M24 sold under the Xerox brand.


Lo Xerox 6060 era in realtÓ un Olivetti M24 venduto come Xerox.
